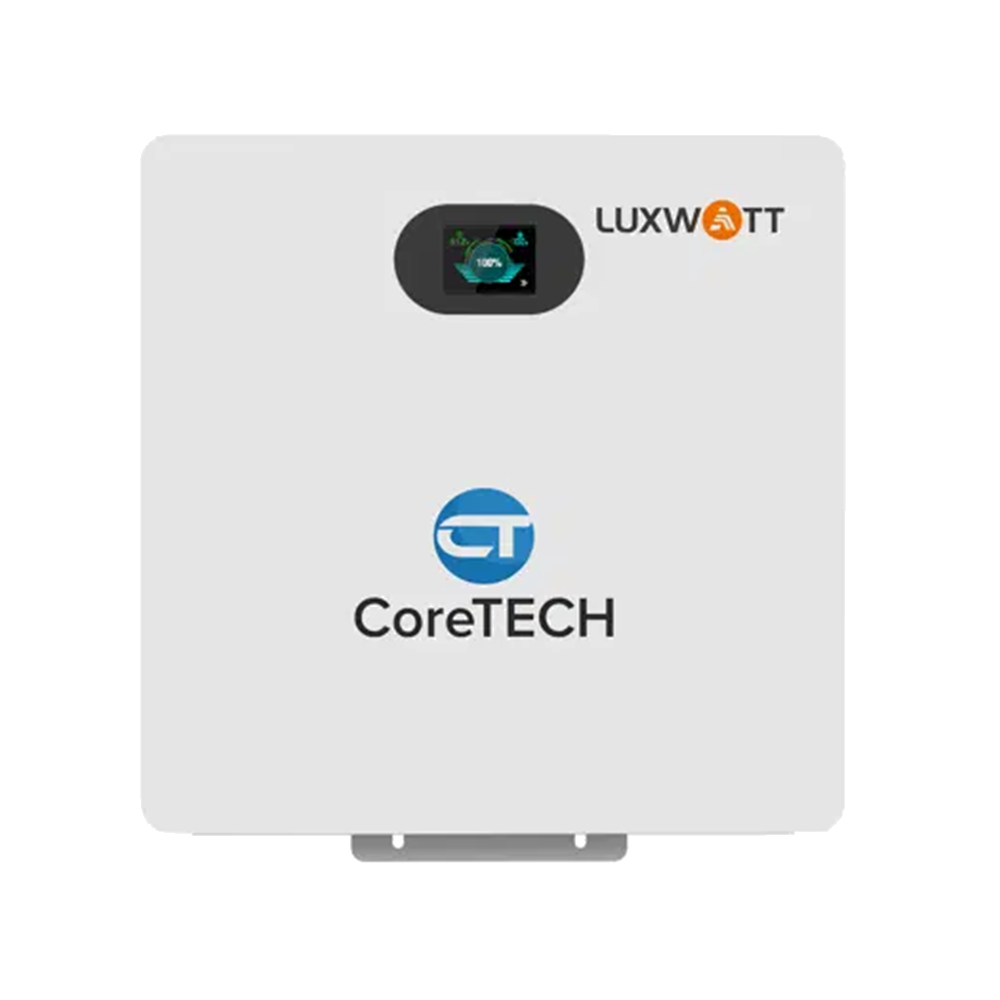

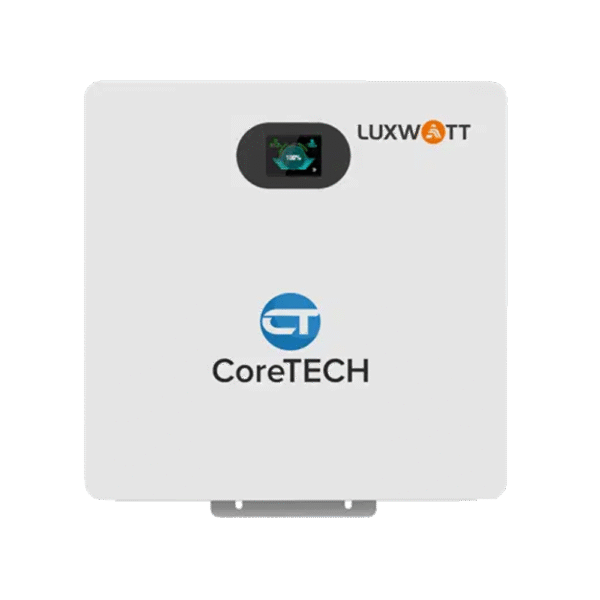

CoreTECH | Luxwott | 5.12kw Lithium Battery

Product Model: ES-BOX42

Rated Power: 5.12kWh

Rated Voltage: 51.2V

Suggested Working Voltage Range: 44.8V–56.8V

Continual Charge/Discharge Current: 1C

Max Charging/Discharging Current: 100A

Rated Capacity: 100Ah

Communication Method: USB / RS485 / CAN

Working Temperature Range:

• Charging: 0°C ~ 55°C

• Discharging: -20°C ~ 55°C

Working Humidity Range: 5–85% RH

Depth of Discharge: 80–90%

Cycle Life: ≥6000 (80% DOD / 0.2C / 25±2°C)

Protection Grade: IP20

Dimensions: 485mm (L) × 480mm (W) × 155mm (H)

Display: 3.2-inch touchscreen

Net Weight: ≤45kg

Parallel Support: Up to 16 units

Certification: ROHS / UN38.3 / MSDS
