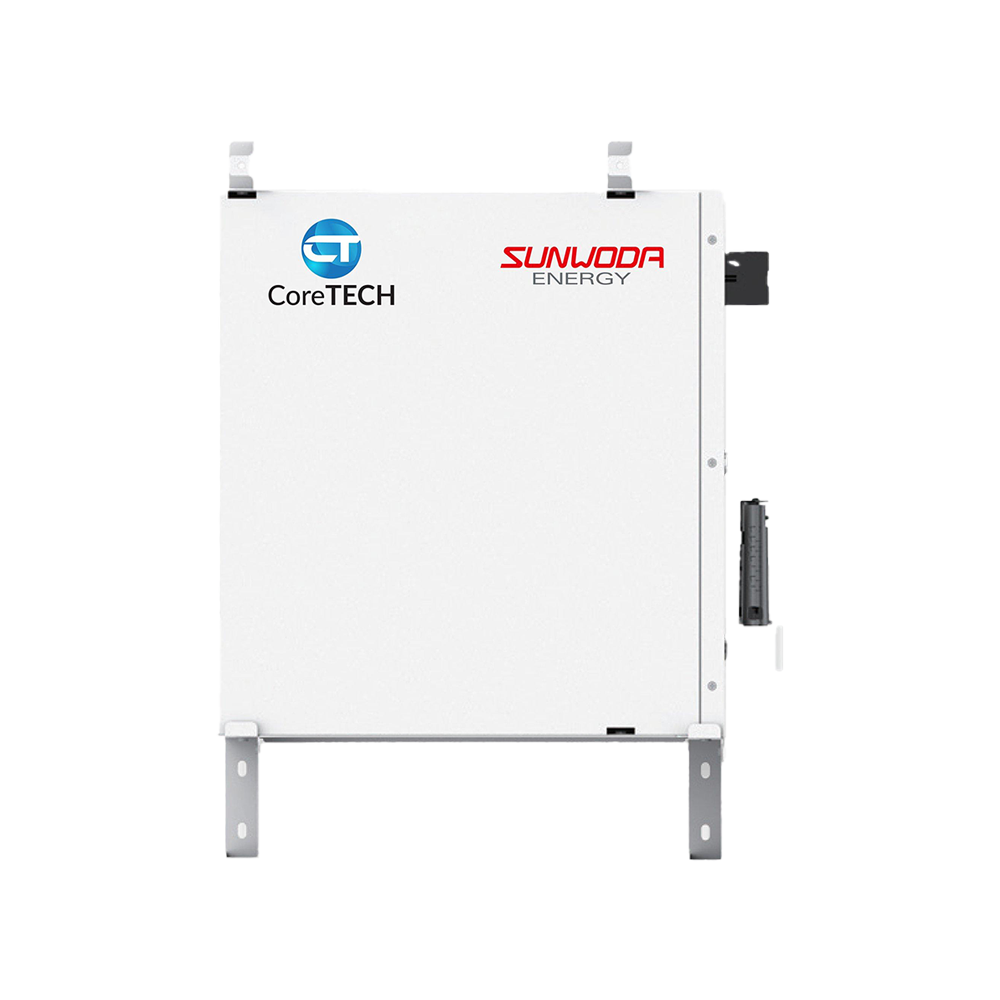

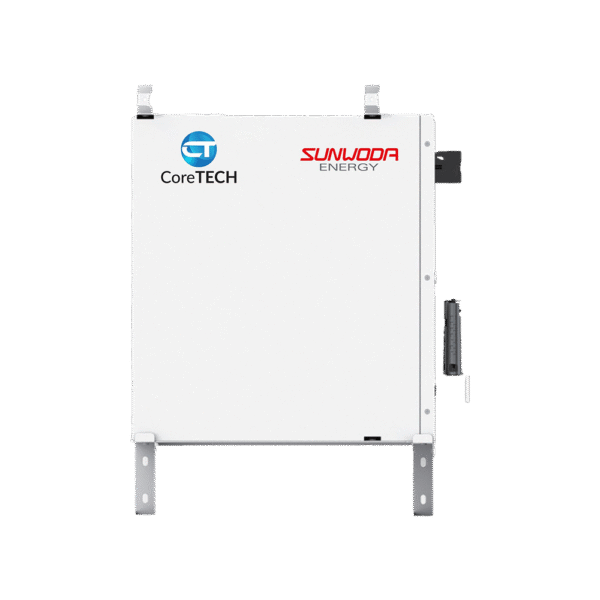

CoreTECH | Sunwoda | 5.12kw Lithium Battery
₨ 230,000
Sunwoda Energy’s Atrix 5.12 kWh is a reliable and long-lasting modular lithium battery, ideal for storage solutions for residential and commercial photovoltaic systems.
This LV battery offers high charging and discharging efficiency, 100 per cent depth of discharge, long service life and high density. Its plug-play connections also offer easy and flexible installation, and the capacity can be expanded up to a maximum of 120kWh.
Model: Atrix Smart 5
Nominal Energy: 5kWh
Usable Energy (100% DOD): 5kWh
Rated Voltage: 51.2V
Charge/Discharge Cut-Off Voltage: 44.8V–55.2V
Rated Charge/Discharge Current: 50A / 80A
Max Charge/Discharge Current: 100A / 100A
Communication Interface: CAN 2.0 / RS485
Scalability: Up to 16 units in parallel (max 80kWh)
Operating Conditions
Installation Location: Indoor
Operating Temperature:
Discharging: -20°C to 50°C ( -4°F to 122°F )
Charging: 0°C to 50°C ( 32°F to 122°F )
Humidity: 5%–95%, non-condensing
Dimensions (W × H × D): 501 × 142 × 452 mm per pack
Weight Options: 45kg / 90kg / 135kg / 180kg
Enclosure Protection Rating: IP20
Altitude Limit: <4000m
Cooling: Natural convection
Warranty: 7 years
Certifications: IEC62619 / CE / UN38.3
