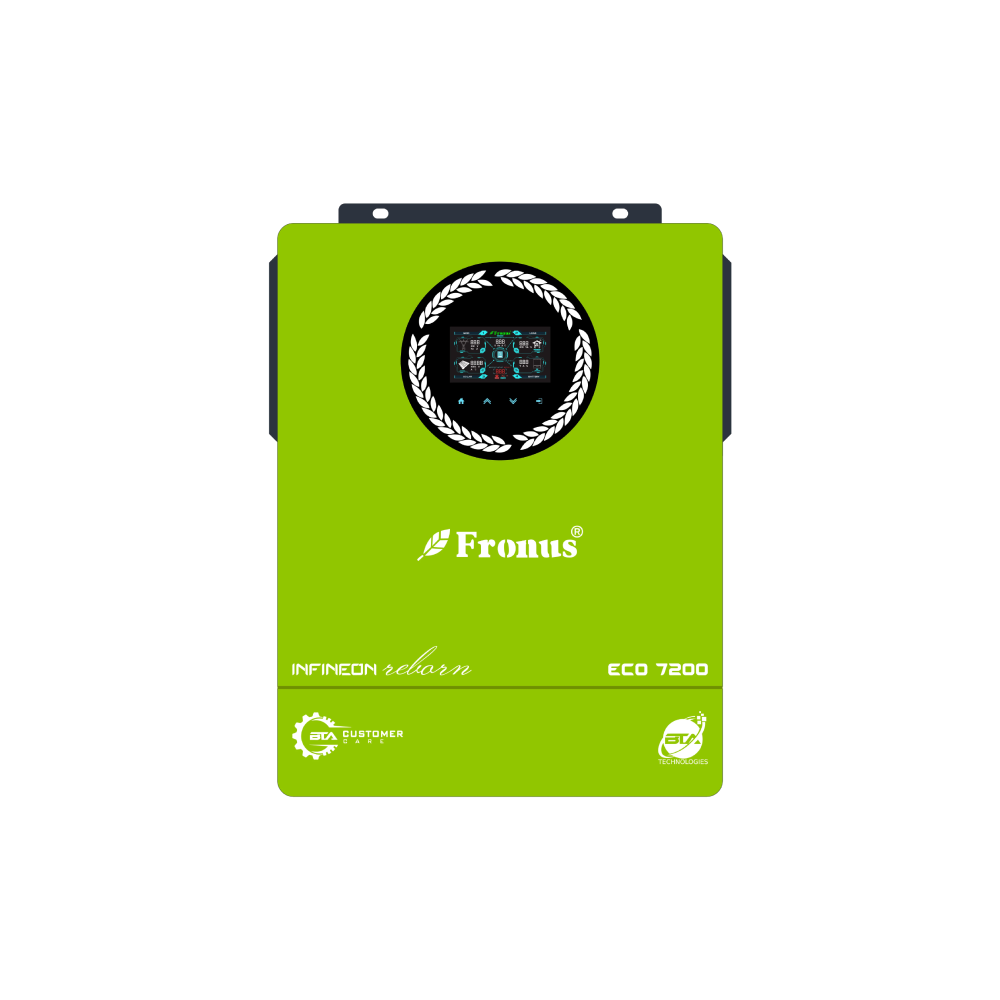

Fronus Infineon PV 7200 6.2KW Hybrid Inverter

Key Features

• Pure Sine Wave Output for stable and clean power for sensitive equipment

• High Efficiency with a peak efficiency of 93% for optimal energy conversion

• Surge Capacity of 12,400W for 5 seconds, allowing support for high-inrush loads

• MPPT Solar Charging supports up to 7200W of solar input for maximum energy harvesting

• Overload Protection with time-based limits (3s at ≥150% load, 5s at 101%-150% load)

• 3-Step Charging Algorithm for optimized battery management and long-term battery health

• Fast Transfer Time (10ms for UPS, 20ms for appliances), minimizing power disruptions

• Grid-Tie Capabilities for feeding excess energy back to the grid with high power factor (>99)

• Wide Input Voltage Range for compatibility with various battery configurations (46V–63V)

• Maximum Conversion Efficiency (DC/AC) up to 97% for minimized energy losses

• Compact Design for easy installation in residential or commercial solar systems

• CE Certified, ensuring international safety and quality standards compliance
